Product Description

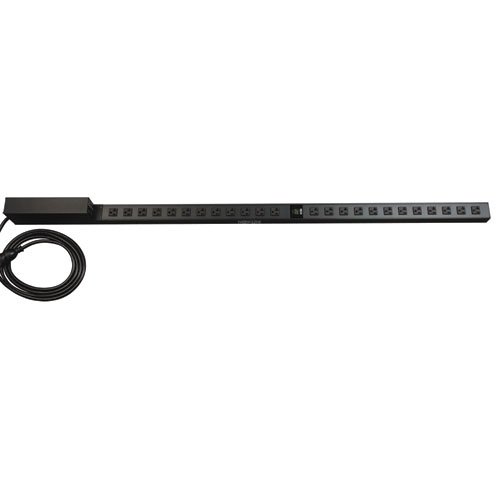

Tripplite Monitored PDUMNV20 63 in. / 160 cm 0U vertical rack PDU supports 20A peak capacity at 120V (agency de-rated to 16 amps continuous). Includes attached L5-20P input cordset with 5-20P adapter and 16 5-15/20R outlets. Visual and remote current monitoring tracks real time output current level. Supports 0U vertical rackmount installation with included mounting brackets. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
| List Price: | $311.99 |
| Price: |
$309.01 & eligible for FREE Super Saver Shipping on orders over $25. Details |
| as of Thu, 14 Mar 2013 13:27:36 GMT | |
Product Details
- Brand: Tripp Lite
- Model: PDUMNV20
- Platform: Windows
- Format: CD-ROM
- Original language: English
- Number of items: 1
- Dimensions: 63.00" h x 2.20" w x 4.30" l, 13.80 pounds
Features
- Monitored 20A PDU with 24 x 5-15/20R outlets, 10-ft. cord and L5-20P plug
- Built in SNMPWEBCARD for remote power monitoring
- Digital meter displays PDU load in amps
- 0U standard or toolless vertical rackmount options; all-metal housing
- 2-year warranty
From the Manufacturer
Tripp Lite's PDUMNV20 Monitored PDU is the ideal choice for distributing and managing power in high-density IT environments. Featuring a built-in SNMPWEBCARD, the PDUMNV20 provides full remote power monitoring via a secure network or web browser interface. Used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDUMNV20 can also perform temperature/humidity and dry contact interface monitoring. These capabilities provide IT personnel with enhanced oversight of facility power and environmental conditions. With 24 5-15/20R outlets, an L5-20P plug and an adapter to convert the plug to a standard 5-20P, the PDUMNV20 offers efficient, flexible power distribution options. It is configurable with included hardware for 0U (vertical) installation in the cable management area of most rack enclosures, and also supports toolless button-mount vertical installation in compatible rack enclosures.

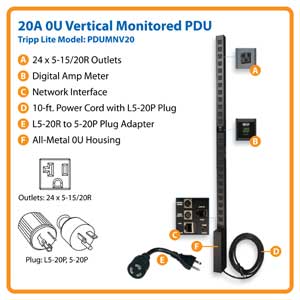

Key Features
|
Click here for a larger image
Click here for a larger image
Click here for a larger image
Built-In Network Interface
The PDUMNV20 features a built-in SNMPWEBCARD that enables full remote power monitoring via a secure network or web browser interface. The PDUMNV20 can monitor, report and log input/output power status, PDU load conditions and more. Tiered access privileges allow both an administrator and a guest to log in and monitor the PDU via a web browser.
Advanced Network Monitoring Capabilities
The PDUMNV20 gives IT personnel enhanced oversight of network power conditions. It remotely monitors site power conditions and PDU load levels, and provides including immediate event notifications via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. Used with Tripp Lite's optional ENVIROSENSE sensor, the PDUMNV20 can also remotely monitor temperature/humidity conditions plus up to four dry contact interfaces for alarm, security and telecom devices. These capabilities simplify and streamline the task of network power management.
Broad Compatibility
It features 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.
Click here for a larger image
Digital Current Meter
The PDUMNV20 is equipped with a digital LED meter that enables IT personnel to monitor the total load on the PDU in real time. This meter helps to assure that the PDU is used at maximum capacity with no danger of overload.

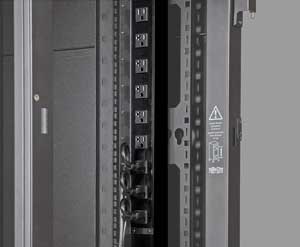

Versatile Installation Options Including Toolless Mounting
The PDUMNV20 is easy to integrate with a wide range of data center and network applications. It can be configured for 0U rack installation with included hardware, and also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack. The PDUMNV20 is further optimized for reliable service in IT applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff.
Technical Specifications
Tripp Lite PDUMNV20 Monitored PDU
| Model: | PDUMNV20 |
|---|---|
| Voltage compatibility: | 120 VAC |
| Frequency compatibility: | 50/60 Hz |
| Amps: | 20 (agency de-rated to 16A continuous) |
| Outlet quantity/type: | 24 x 5-15/20R |
| Cord/plug: | 10 ft./L5-20P (attached) |
| Plug adapter: | 6-in. L5-20R to 5-20P |
| Communications: | SNMPWEBCARD (built-in) |
| LED display: | 2-character (indicating amps) |
| Dimensions (HWD): | 63 x 2.2 x 4.3 in. (0U) |
| Weight: | 7.0 lbs. |
| Material of construction: | Metal |
| Agency approvals: | UL 60950-1 (US/Canada) FCC Class A NOM (Mexico) RoHS |
| Warranty: | 2 years |
What's in the Box
- PDUMNV20 Monitored PDU
- 6-in. L5-20R to 5-20P Plug Adapter
- Plug Retention Plates
- Rackmounting Hardware
Protect, Power, Organize and Control with Tripp Lite
Tripp Lite UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection and connectivity solutions for all electronics.
SMART2200RM2U SmartPro® UPS System
Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment. The SMART2200RM2U provides 2200VA/1920W power capacity with 8 outlets arranged in 3 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RM2U supports connected equipment for 13 minutes during power failures at a half load of 960 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
SU2200RTXL2Ua SmartOnlineΓäó UPS System
True on-line operation and battery backup protection for servers, storage devices and telecom equipment. The SU2200RTXL2Ua provides 2200VA/1600W power capacity with 7 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SU2200RTXL2Ua supports connected equipment for 14 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
ENVIROSENSE Environmental Sensor
Provides remote temperature/humidity monitoring and a dry contact interface to control and monitor alarm, security and telecom devices in network, data center and similar applications. Requires UPS system with installed SNMPWEBCARD or switched PDU. 2-year warranty.
SRCOOL12K Self-Contained Portable Air Conditioning Unit
Compact, portable air conditioning unit is ideal for wiring closets and other space-critical locations where facility air conditioning can't reach. 12,000 BTU of cooling power. Connects to a standard 5-15R receptacle; no adapter required. Uses EPA-compliant, R410a refrigerant. Standard louvered vent for general room cooling; ducted vent to direct cold air where needed. Requires no floor drain or water collection tank. 1-year warranty.
B020-U16-19-K NetDirectorΓäó Console KVM Switch
Controls an entire network in just 1U of rack space. The B020-U16-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 16-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect the switch to servers. Controls up to 512 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.
SR42UB SmartRackΓäó Enclosure
Premium 42U rack enclosure. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; toolless vertical mounting for PDUs and cable managers; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. Ships fully assembled. 5-year warranty.
